Getting started with FPV drones

Radiomaster Zorro

• 4in1, ELRS, and Crossfire options.
• Operating System: EdgeTX/OpenTX
• $145.99:Banggood

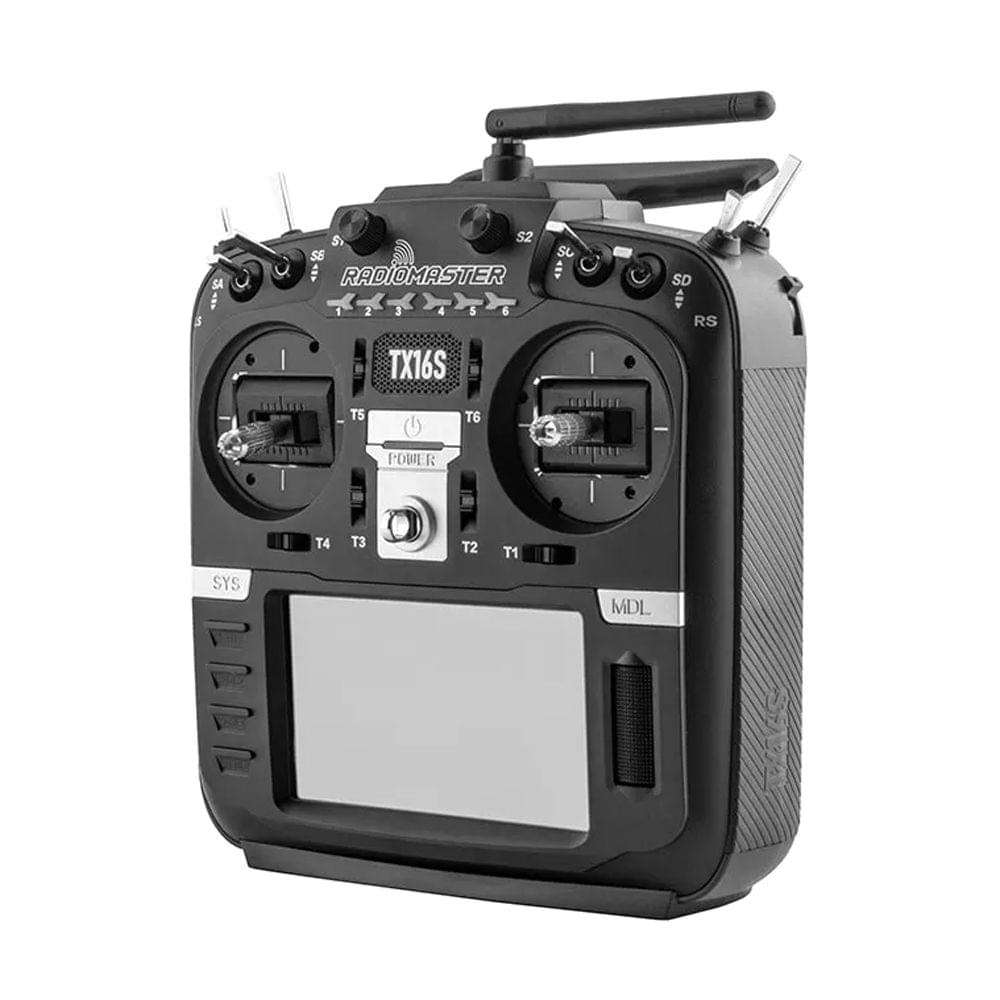

Radiomaster TX16S MKII

• 4in1, ELRS, and Crossfire options.
• Operating System: EdgeTX/OpenTX
• $199.99 getfpv

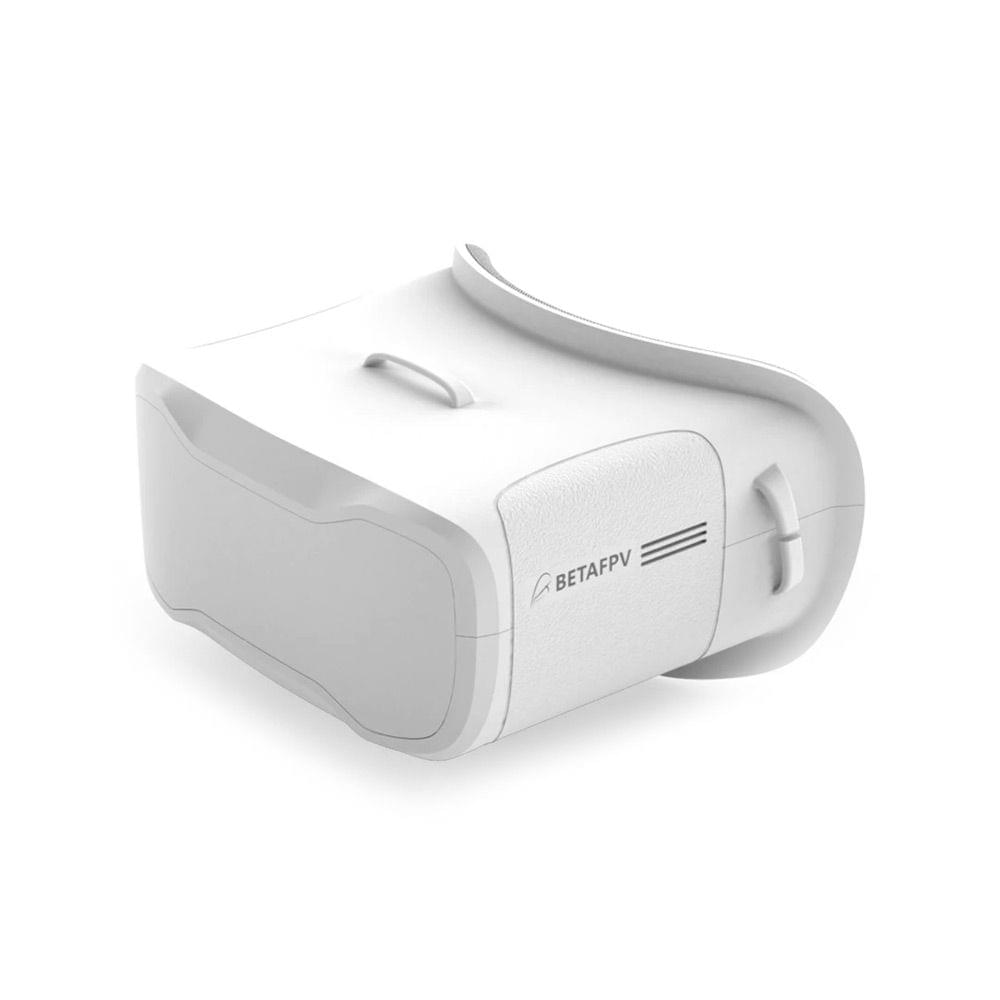

Betafpv Vr02

• $65.99 Amazon
• Includes battery
• Weight: 300g
• Screen resolution: 800*480 px
• Screen size: 4.3 inch
• View Angle: 55°
• Built-in 5.8G 14DBI high-quality antennas

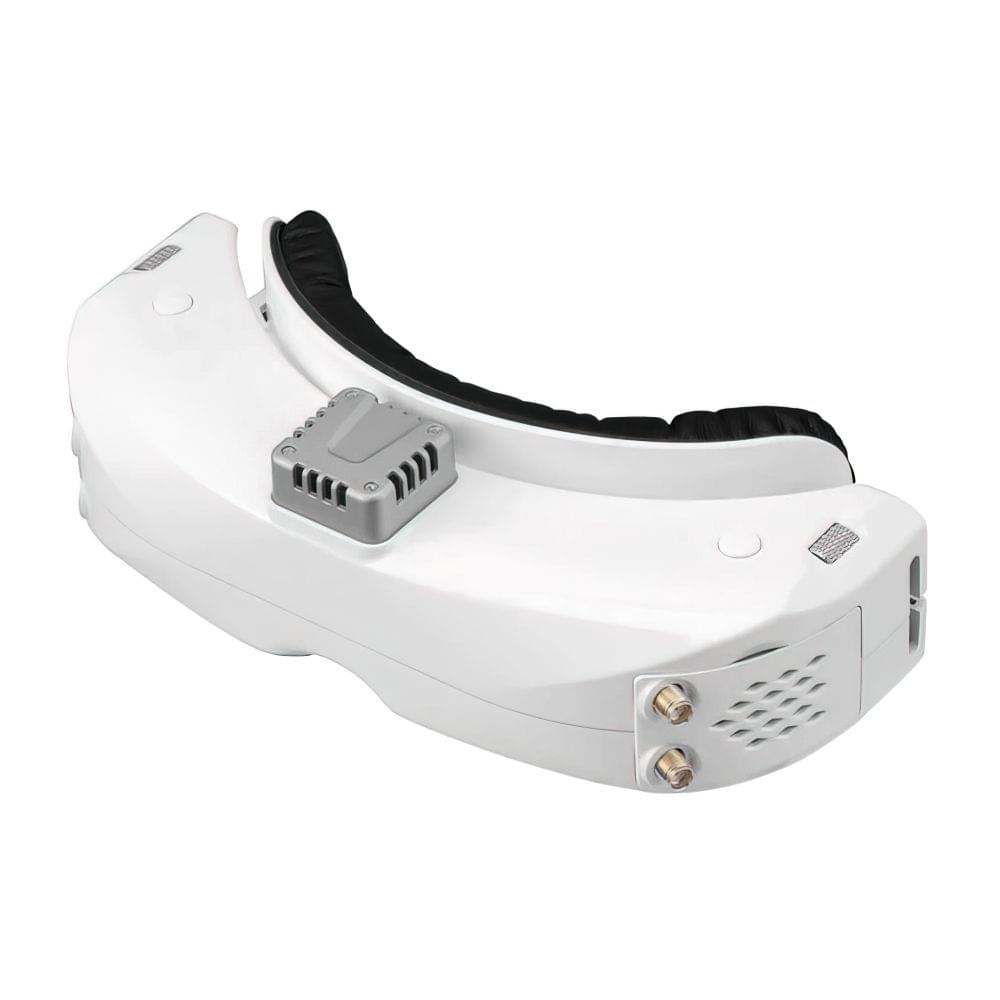

Skyzone SKY04L V2

• Receiver: 5.8Ghz 48CH Steadyview Receiver
• Screen: LCOS
• Resolution: 1280X960
• Aspect Ratio: 4:3/16:9
• FOV (Diagonal): 39°
• DVR: H264, 60fps, SD Card support up to128Gb
• $362.99 getfpv

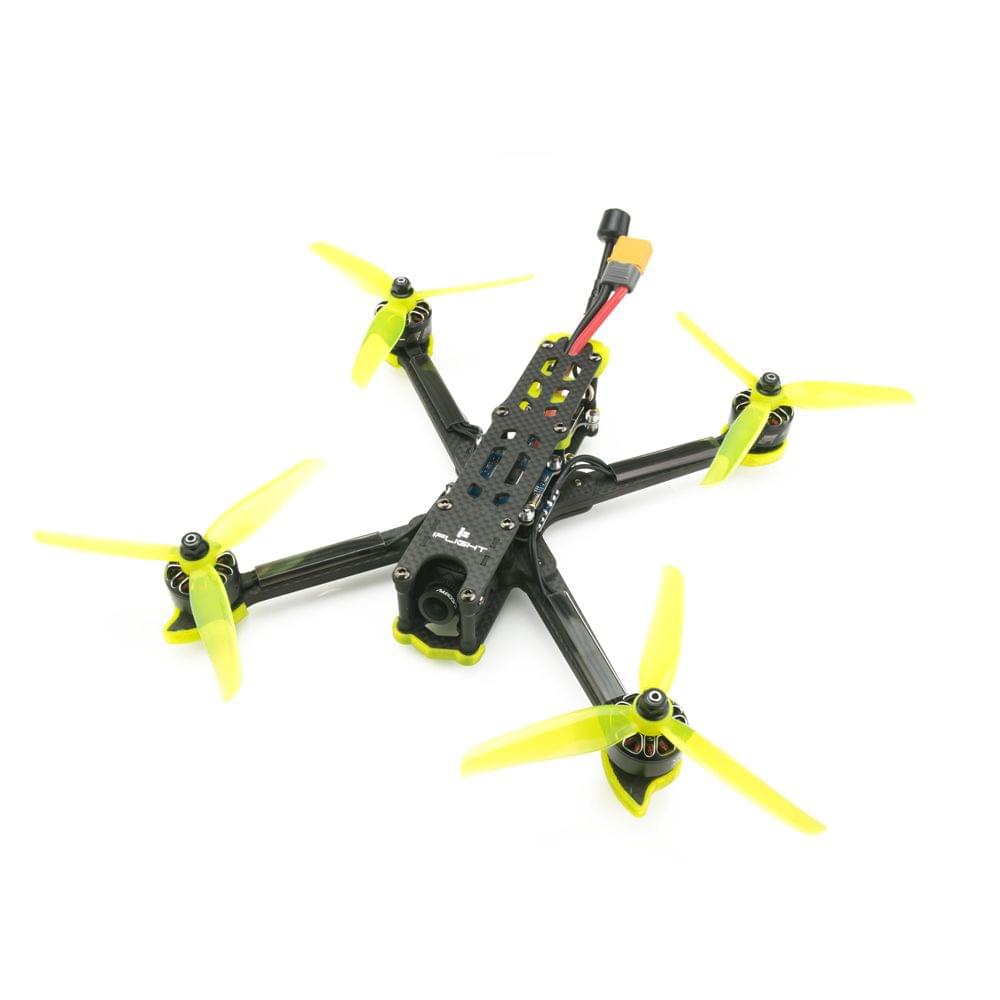

iFlight Nazgul5 V2 4S

Banggood

Features

• 5mm arm design for more durability
• XING-E 2207 motors and NAZGUL 5140 props
• Fits both 30.5x and 20x stacks

Specifications

• FC: SucceX-E F7 45A flight stack
• ESC: SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
• VTX: SucceX Force 5.8g 800mW VTX Adjustable
• XING-E 2207 FPV Motor（4S 2750KV)
• Wheelbase: 240mm*240mm
• Body size: 170*170mm
• Propeller size: 5 inch /5.1 inch
• FC pattern: 30.530.5/2020 mm
• FPV cam spacing: 19mm
• Weight: 393.4g (without battery)

Recommended Parts (Not Included)

• Battery 4S 1550mAh

Includes

• Prebuilt and tested Quadcopter
• 1 x XL5 V5 Frame
• 1 x RaceCam R1 FPV Camera
• 1 x Albatross RHCP SMA 5.8g antenna
• 2 sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
• 1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
• 1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

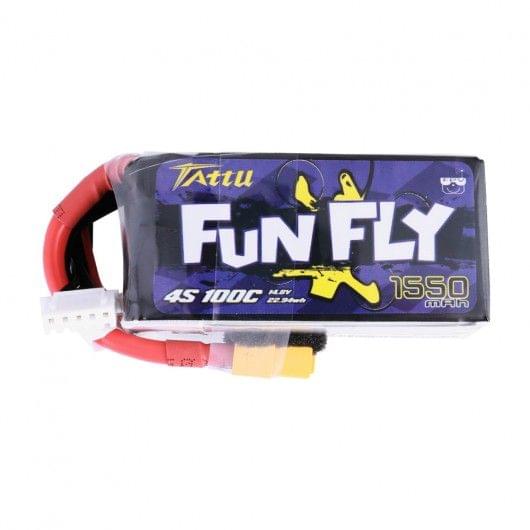

Tattu Funfly 1550mah 4s Lipo

getfpv

• Minimum Capacity: 1550mAh
• Configuration: 4S1P / 14.8V / 4 Cells
• Discharge Rate: 100C
• Max Burst Discharge Rate: 200C
• Net Weight(±20g): 178g/unit
• Dimensions: 72mm Length x 35mm Width x 36mm Height
• Charge Plug: JST-XHR
• Discharge Plug: XT-60
